Structure design of torsion spring design

Structure design of torsion spring design

Sep 11, 2021

Structure Design Of Torsion Spring Design

1. The torsion spring is the extreme of the variant spring. From single torsion spring to double torsion spring, special-shaped torsion spring, and even various torsion deformations, can be shaped according to design.
2. Use on a supporting mandrel or arbor. The dimensions of the mandrel may allow a gap of approximately 10% in the listed deviations. If the deviation is large, the size of the stem should be reduced.
3. In order to make the torsion spring function in good condition, the space (minimum axial space) in the assembly must be sufficient. The minimum axial space cannot refer to the length of the coil. The torsion spring should be used along the direction of winding the coil. Because of the residual stress, the maximum load is lower in the loosening direction.
4. The torque value listed is the maximum torque recommended by the torsion spring. These values can be increased by about 20% under static conditions with a little adjustment

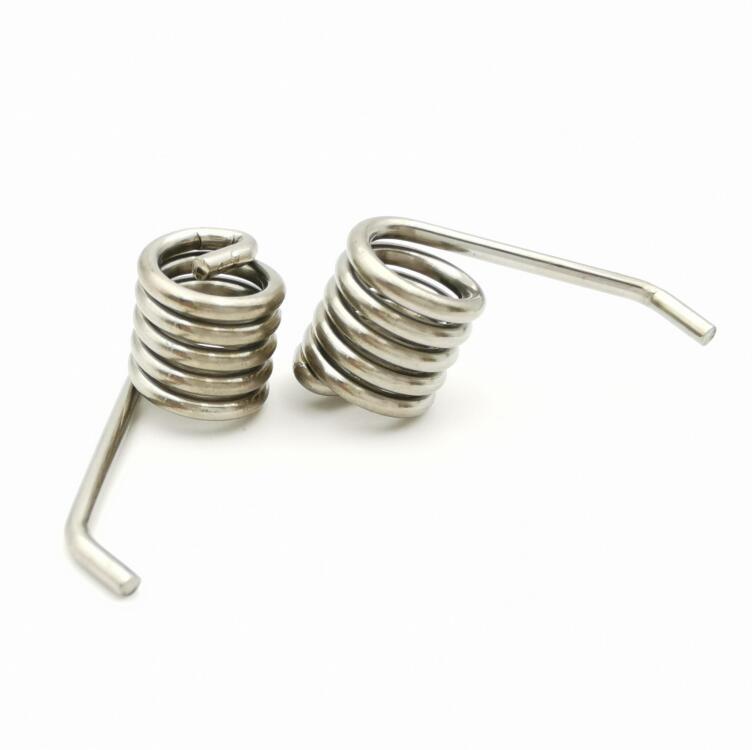

Torsion spring C-382

Torsion spring C-382

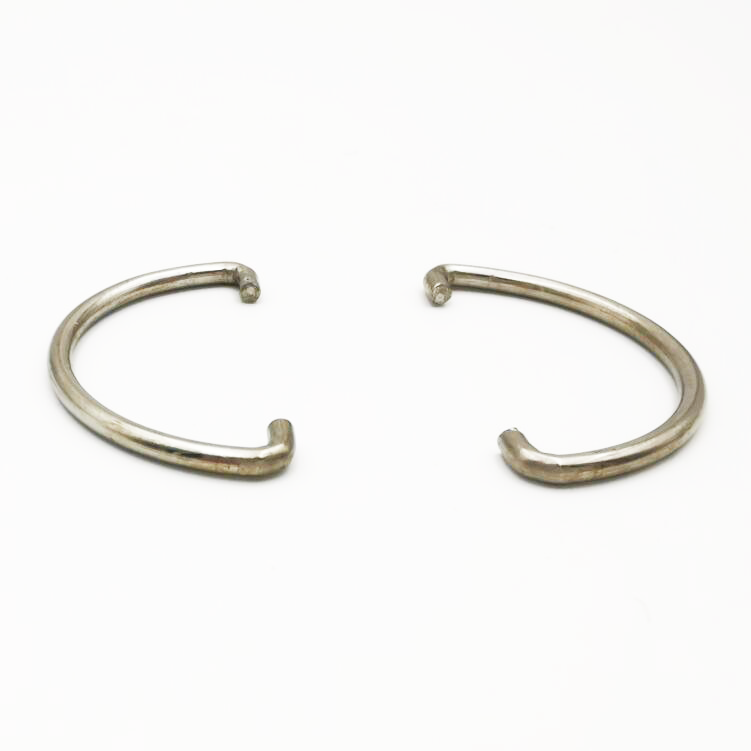

Torsion spring C-14

Torsion spring C-14


If you are interested in torsion spring design,You can browse related products and initiate consultations on our website.
