Large Coil Compression Springs For Engineering Excellence

Large Coil Compression Springs For Engineering Excellence

Jan 30, 2024

When it comes to heavy-duty mechanical systems, large coil compression springs play a pivotal role. These springs, often overlooked in everyday objects, are critical components in various engineering applications. Understanding their functionality, design considerations, manufacturing processes, applications, and maintenance is crucial for ensuring optimal performance and longevity in industrial settings.

Definition and Function

Large coil compression springs are robust, helically wound mechanical devices designed to absorb and store energy when subjected to a compressive force. They work by compressing under load and returning to their original length when the force is removed. This ability to withstand immense pressure while maintaining structural integrity makes them indispensable in numerous industries.

Importance in Engineering

In engineering, large coil compression springs are essential for providing resistance and stability in heavy machinery and structures. Whether it's supporting the weight of a vehicle or absorbing shocks in industrial equipment, these springs contribute to the overall efficiency, safety, and reliability of various mechanical systems.

Design Considerations

Material Selection

Choosing the right material for large coil compression springs is paramount to their performance and durability. Materials like alloy steel, stainless steel, and titanium offer high strength, corrosion resistance, and fatigue life, making them ideal for demanding applications.

Wire Diameter and Coil Pitch

The diameter of the wire and the pitch of the coils significantly impact the spring's load-bearing capacity and deflection characteristics. Engineers carefully calculate these parameters based on the specific requirements of the application to ensure optimal performance under varying loads and conditions.

Number of Active Coils

The number of active coils determines the spring rate and the amount of force required to compress the spring to a certain length. Balancing the number of coils with the desired load requirements is crucial for achieving the desired performance and ensuring the spring operates within its elastic limits.

Manufacturing Process

Cold Forming

Large coil compression springs are typically manufactured through cold forming processes, where a wire is wound around a mandrel to create the desired coil shape. Cold forming ensures precise dimensions and misapprehensions maintain the material's mechanical properties, resulting in high-quality springs with consistent performance.

Heat Treatment

After forming, the springs undergo heat treatment processes like stress relieving and tempering to enhance their strength, toughness, and fatigue resistance. Proper heat treatment is essential for optimizing the spring's performance and ensuring long-term reliability in demanding environments.

Surface Finish

The surface finish of large coil compression springs is carefully controlled to minimize friction, prevent corrosion, and improve fatigue life. Processes like shot peening and electroplating are commonly used to achieve the desired surface texture and protection against wear and degradation.


Automotive Industry

In the automotive industry, large coil compression springs are used in suspension systems, engine mounts, and braking systems to absorb shocks, support vehicle weight, and maintain stability. Their robust design and reliable performance make them indispensable for ensuring a smooth and safe driving experience.

Aerospace Industry

In aerospace applications, large coil compression springs are utilized in landing gear systems, seat mechanisms, and control surfaces to withstand extreme forces and vibrations during flight. Their lightweight construction, high strength-to-weight ratio, and precision engineering make them ideal for aerospace environments where reliability is paramount.

Industrial Machinery

In industrial machinery, large coil compression springs find applications in presses, stamping machines, and heavy equipment to provide cushioning, support, and motion control. Their ability to handle high loads, maintain dimensional stability, and withstand harsh operating conditions make them essential components in various manufacturing processes.

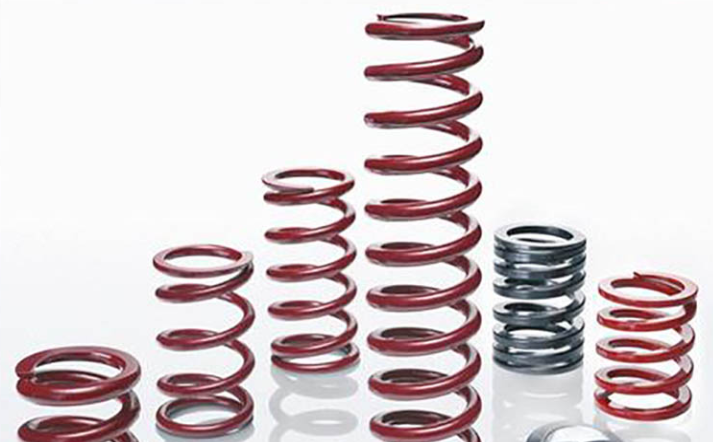

large coil compression springs

Maintenance and Inspection

Regular Inspection

To ensure optimal performance and safety, large coil compression springs should be inspected regularly for signs of wear, deformation, or corrosion. Visual inspections, measurements, and load testing can help identify any issues early on and prevent potential failures.

Cleaning and Lubrication

Keeping large coil compression springs clean and properly lubricated is essential for reducing friction, minimizing wear, and extending their service life. Using appropriate cleaning agents and lubricants helps maintain smooth operation and prevents contamination or corrosion in challenging environments.

Replacement Schedule

Despite their robust construction, large coil compression springs will eventually wear out over time due to fatigue and stress. Establishing a regular replacement schedule based on usage, operating conditions, and industry standards is crucial for ensuring the continued reliability and safety of mechanical systems.


Large coil compression springs are indispensable components in various engineering applications, providing vital support, stability, and resilience in heavy-duty machinery and structures. By understanding their design, manufacturing, applications, and maintenance requirements, engineers can ensure optimal performance and longevity in industrial settings, contributing to safer and more efficient operations across industries.
