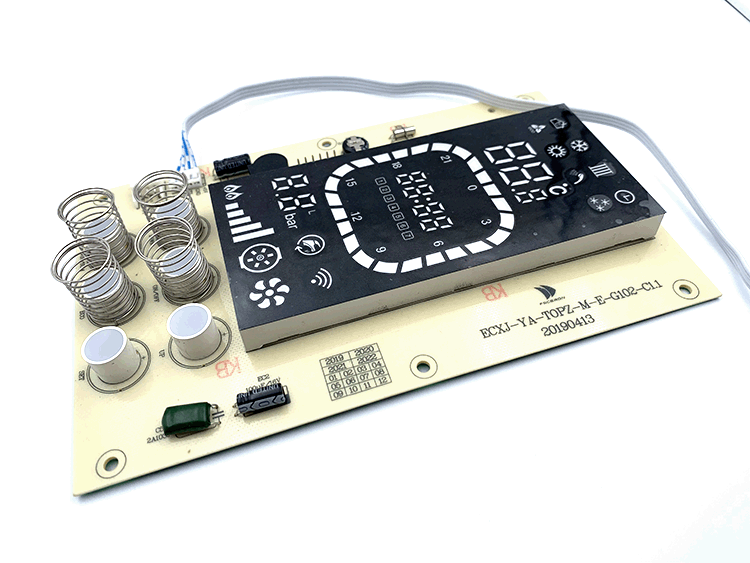

Touch springs, also known as induction springs, are dedicated touch buttons that are dedicated to capacitive and single-chip touch chip solutions. The touch button detects the change of the capacitance caused by the human touch through the charging/discharging time of the resistance-capacitance network formed by the capacitance CX of the resistor and the sensing electrode, thereby detecting the state of the control button and realizing the functions of the touch button. Widely used in a range of consumer electronics, black and white, white electricity, kitchen appliances and other products!

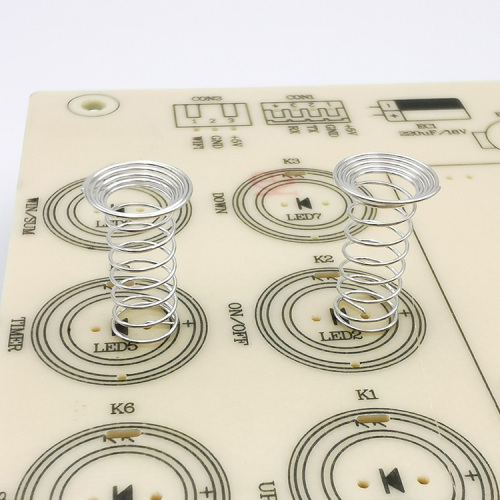

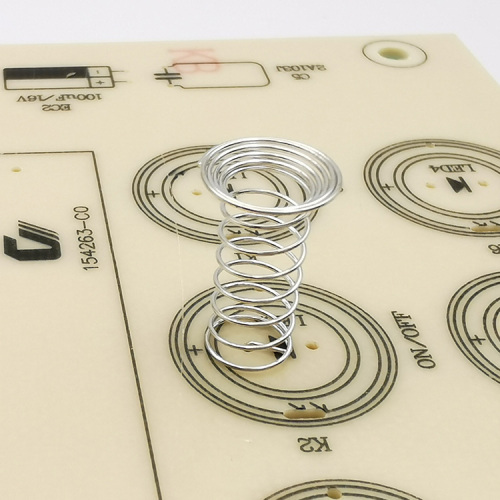

The PCB layout of the product, the internal structure of the finished product, the touch rea meets the design requirements, and the spring can meet the requirements. The simpler the shape, the better, choose the Sparks general spot product,the small batch has no order quantity, fast delivery cycle.

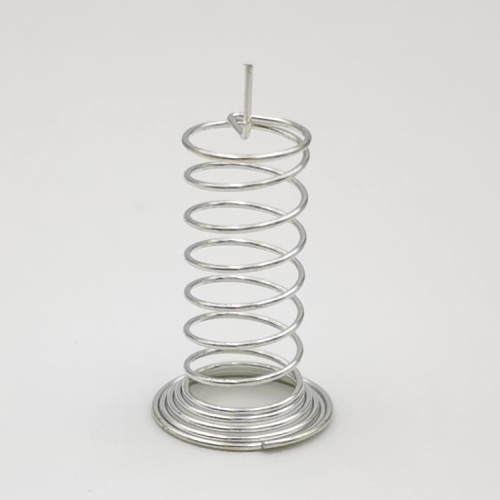

Material: wire is carbon steel with tin plated.
Surface is 10mm, high is 10mm.

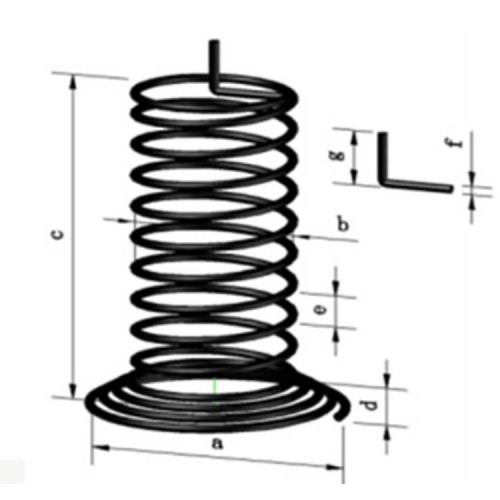

Normal size is below:
Item |
Pate O.D(mm) |
High(mm) |
A-42 |
10 |
10 |
A-1763 |
10 |
13 |
A-1762 |
10 |
15 |
A-2167 |
10 |
18 |
A-1381 |
10 |
20 |
A-1097 |
10 |
22 |
A-2567 |
10 |
35 |

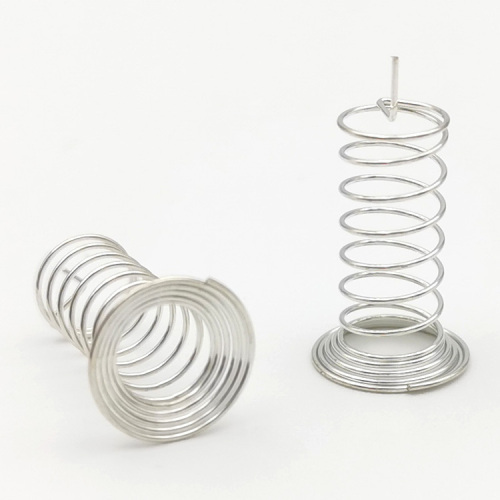

compression coil touch spring
