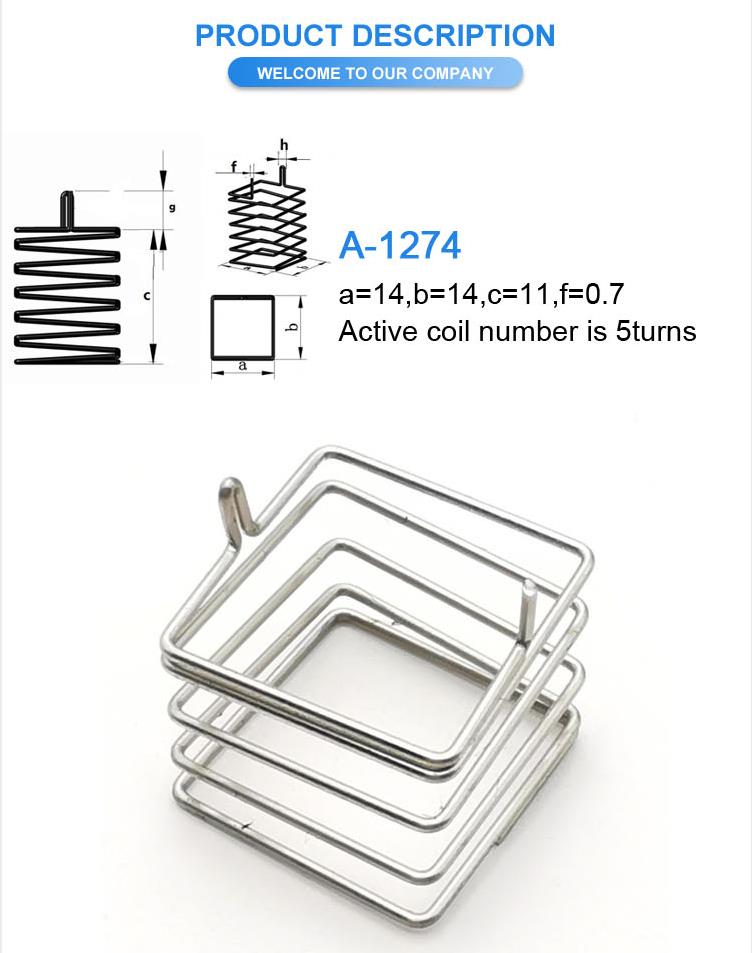

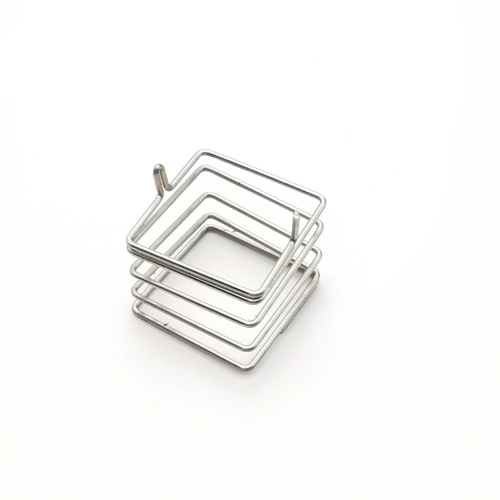

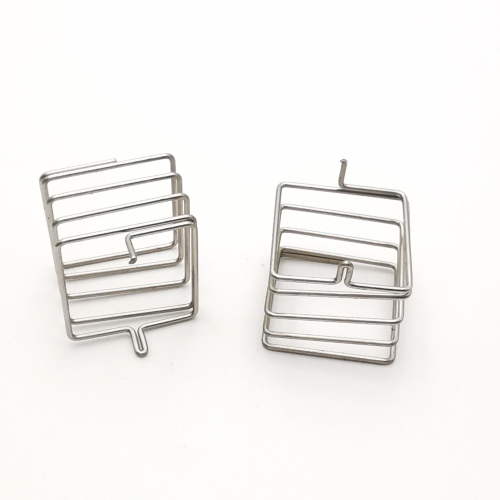

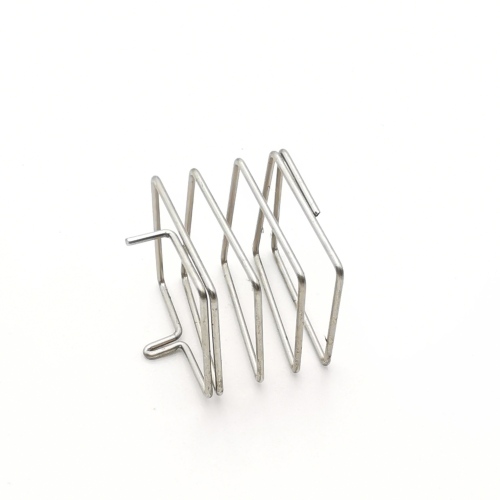

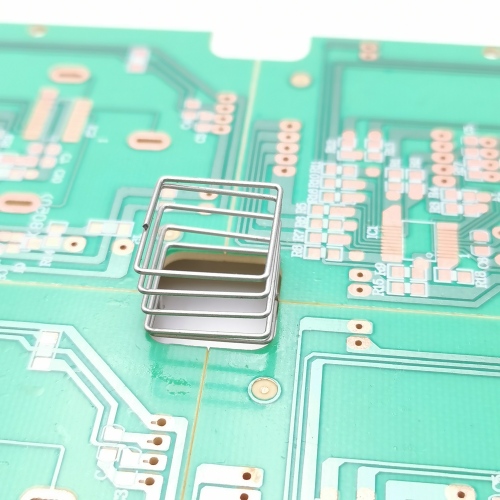

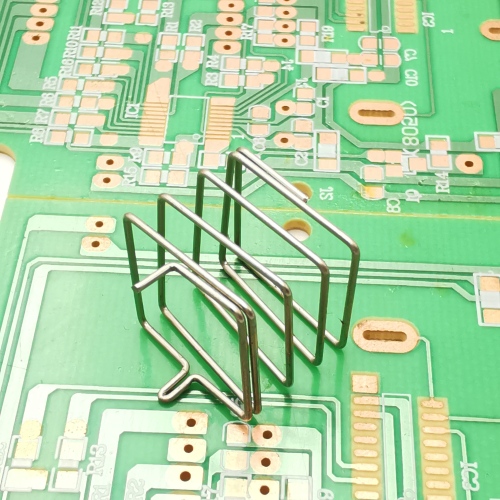

touch panel spring A-1274
Simple shape,simple structure,fast speed of machine produce ,about 50PCS/min; the melting point of tin is 245 degrees;

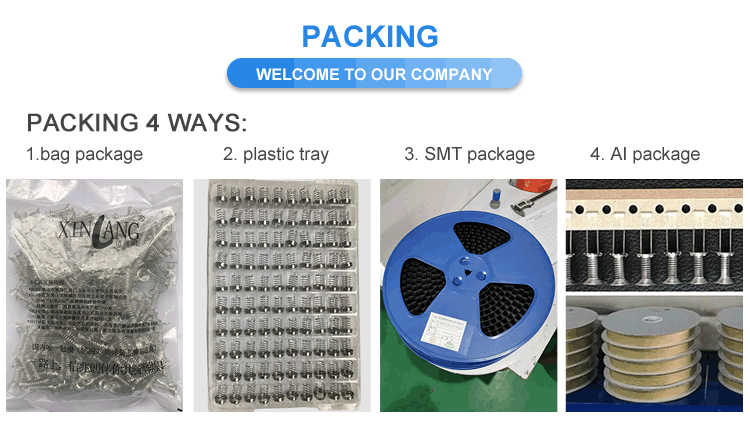

Packing details: 1000PCS / bag
Application industry introduction: Aerospace, Industrial, Medical applications, Automotive applications, Household appliances, Electronic, Toys, Hardware tool
Packing details: 1000PCS / bag
Application industry introduction: Aerospace, Industrial, Medical applications, Automotive applications, Household appliances, Electronic, Toys, Hardware tool
Product Details
Parameter
Inquiry
Customized detail :
| Material | Stainless steel wire, carbon steel wire, Nickel coated wire, |
| Wire Diameter | 0.15mm-4.0mm and above |
| Plate O.D | 8mm to 19mm |
| Total Coils | The total number of coils including the active coils, the top and bottom ends. |
| Active Coils | The coils which are free to deflect under a force. |
| Free Length | The overall length of a spring in the unloaded position |
| Load | Our computer program can assist you on the load design |
| Style of Ends | Open / Closed / Ground |
| Surface Finish | Nickel, Zinc, Gold, Silver, Tin, Chromium, Yellow Zinc, Oxide black, White and Blue zinc or Customized |
| Applications | Aerospace, Industrial, Medical applications, Automotive applications, Household appliances, Electronic, Toys, Hardware tool. |
| Certification |
ISO9000, ISO14000, ROHS, SGS |
Touch springs, also known as induction springs, are dedicated touch buttons that are dedicated to capacitive and single-chip touch chip solutions. The touch button detects the change of the capacitance caused by the human touch through the charging/discharging time of the resistance-capacitance network formed by the capacitance CX of the resistor and the sensing electrode, thereby detecting the state of the control button and realizing the functions of the touch button. Widely used in a range of consumer electronics, black and white, white electricity, kitchen appliances and other products!

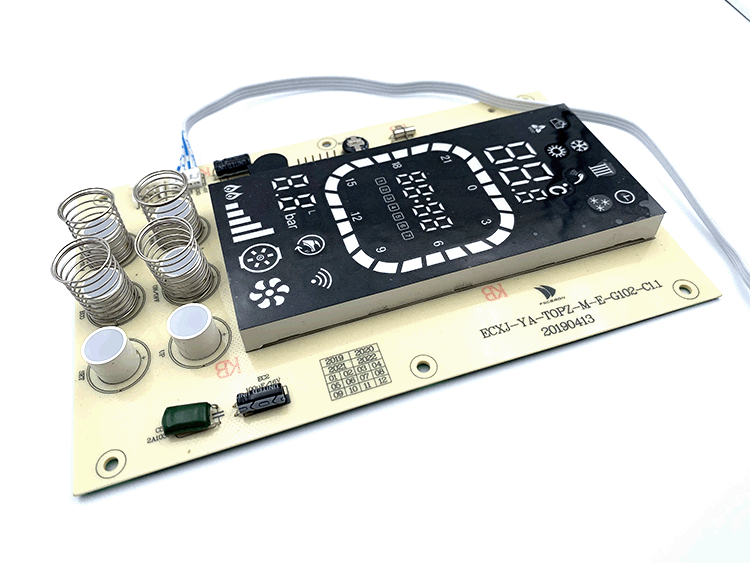

The PCB layout of the product, the internal structure of the finished product, the touch rea meets the design requirements, and the spring can meet the requirements. The simpler the shape, the better, choose the Sparks general spot product,the small batch has no order quantity, fast delivery cycle.
touch panel spring
